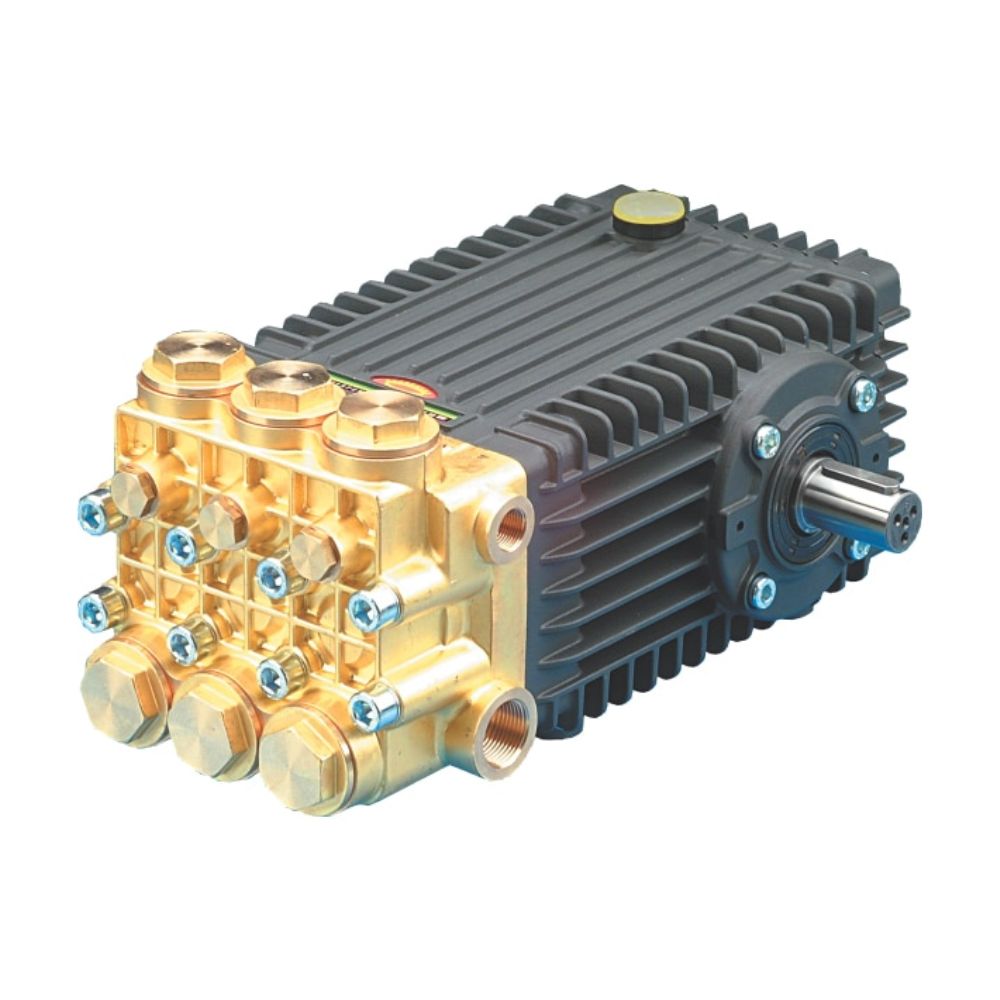

General Pump TSF2221 – 66 Series High-Flow Triplex Pump, 10.2 GPM, 3000 PSI, 24mm Solid Shaft
The General Pump TSF2221 is a powerful member of the 66 Series, engineered for high-volume output and built for continuous-duty work. Delivering 10.2 GPM at 3000 PSI, this industrial-grade triplex plunger pump is ideal for tough cleaning applications, hydro excavation, and fluid transfer systems.
Featuring a 24mm solid shaft, the TSF2221 is easy to integrate with belt-drive or gear-drive systems. With a working speed of 1750 RPM, it offers a balanced combination of pressure and flow while running smoothly and efficiently. The 0.866″ bore and 0.826″ stroke support consistent performance with minimal wear, even under extended operation.
This pump requires 21 EBHP, providing the muscle needed for high-demand tasks without compromising reliability. Backed by a 5-year limited warranty, it reflects General Pump’s long-standing commitment to quality, durability, and peak performance.
Key Features:
-
Max Flow: 10.2 GPM
-
Max Pressure: 3000 PSI
-
Operating Speed: 1750 RPM
-
Shaft Size: 24mm solid shaft
-
Horsepower Required: 21 EBHP
-
Bore: 0.866″ (22 mm)
-
Stroke: 0.826″ (21 mm)
-
Weight: 40.7 lbs.
-
Warranty: 5-year limited warranty
