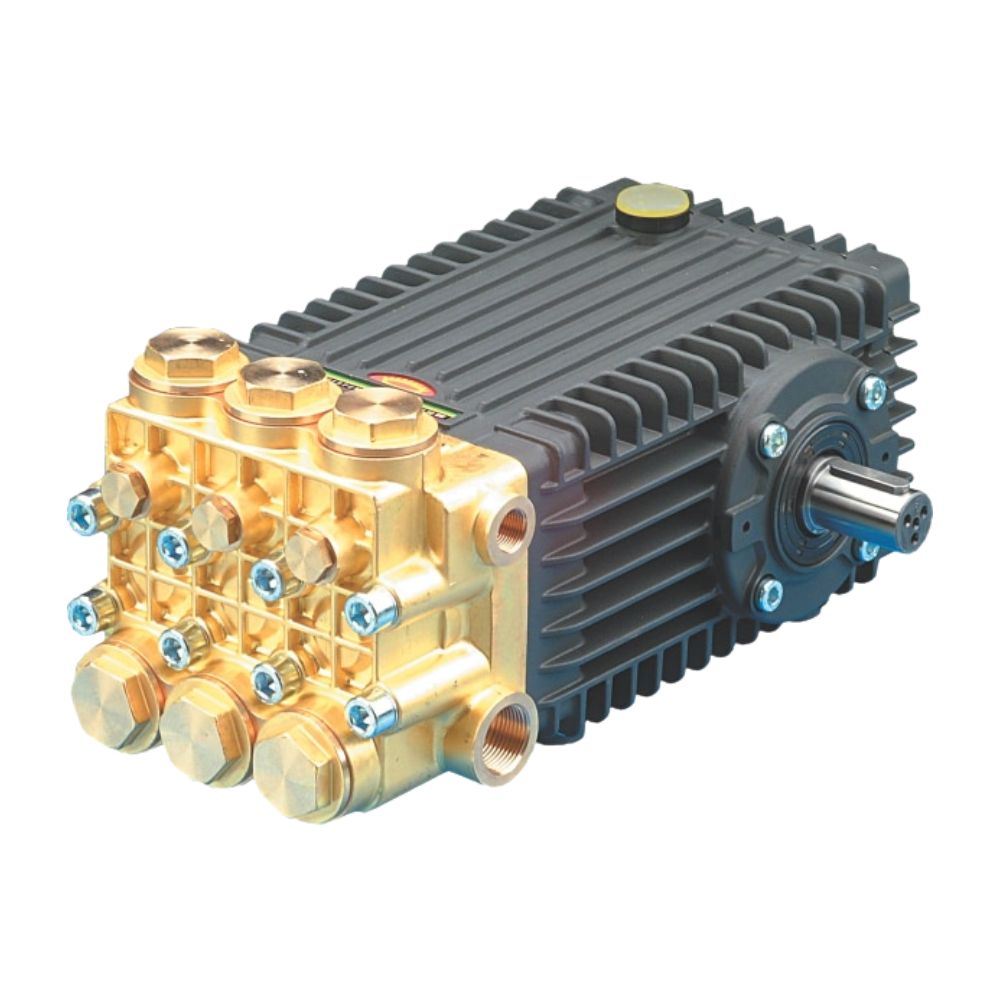

General Pump TSF2021 – 66 Series High-Flow Triplex Pump, 8.5 GPM, 3600 PSI, 24mm Solid Shaft
The General Pump TSF2021 from the 66 Series is designed for demanding jobs where high pressure and continuous performance are essential. This industrial-grade triplex plunger pump delivers 8.5 GPM at 3600 PSI, offering an excellent balance of power and precision for pressure washing, hydro blasting, and industrial cleaning systems.
Built with a 24mm solid shaft, the TSF2021 integrates easily into belt-driven or gear-driven systems. Operating at 1750 RPM, it runs smoothly with low vibration and consistent pressure. The 0.787″ bore and 0.826″ stroke are precisely engineered to support long service life while minimizing wear over time.
Requiring 21 EBHP, this pump delivers serious cleaning power without compromising efficiency. With a 5-year limited warranty, you can count on General Pump’s proven durability and industry-leading quality.
Key Features:
-
Flow Rate: 8.5 GPM
-
Max Pressure: 3600 PSI
-
RPM: 1750
-
Shaft: 24mm solid shaft for belt or gear drive
-
Horsepower Required: 21 EBHP
-
Bore: 0.787″ (20 mm)
-
Stroke: 0.826″ (21 mm)
-
Weight: 40.7 lbs.
-
Warranty: 5-year limited
