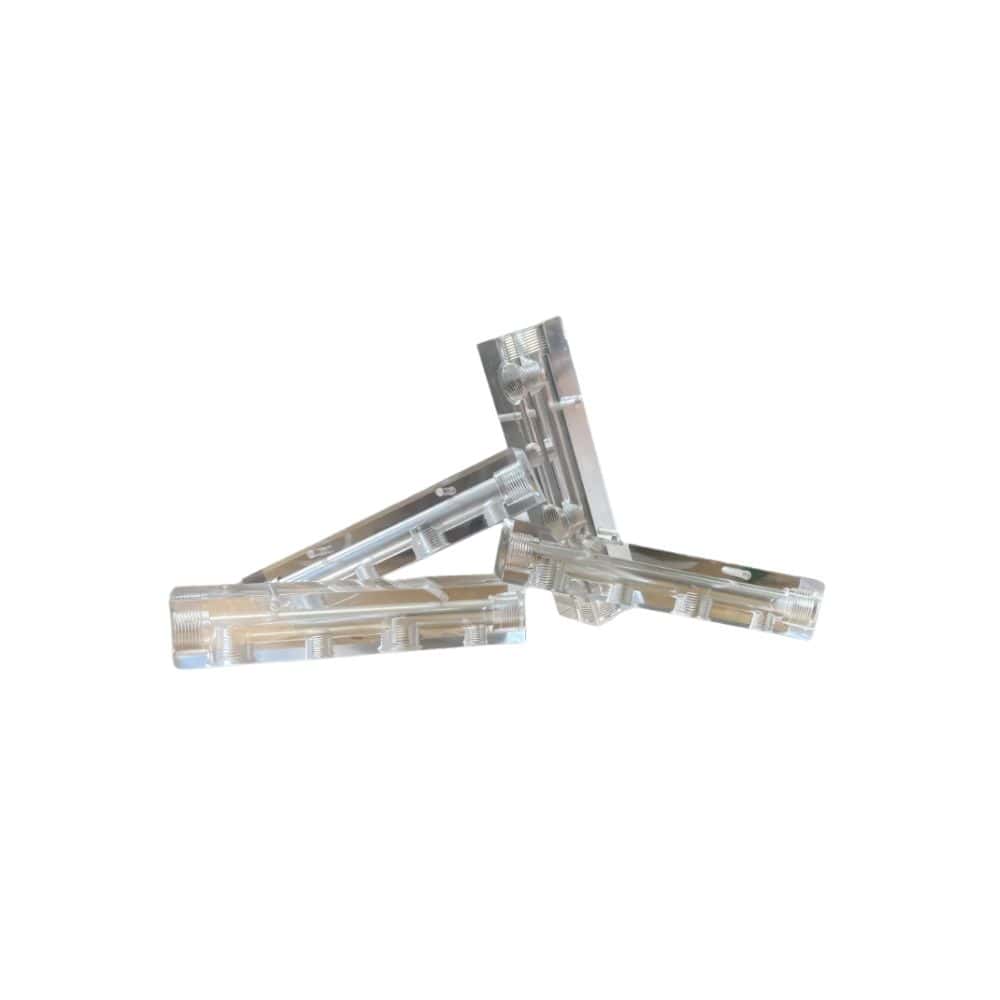

ClearView Series Manifolds

ClearView Manifold V4 – Transparent 4-Port Flow Block

The ClearView V4 Manifold from Midwest Washing Equipment offers the same trusted performance of our standard manifolds—now in a clear body design. This transparent material allows you to visually confirm flow and quickly identify air gaps, blockages, or leaks during operation.

With a four-port layout (¾”, ½”, ¾”, ½”) and a ¾” through-hole and end ports, this manifold supports a variety of system setups. Additionally, two top-mounted holes allow for quick and secure attachment to plates or flat surfaces.

Key Features:

• Clear Construction: Allows easy visual inspection of fluid movement and leak detection

• Versatile Port Sizes: ¾”, ½”, ¾”, ½” ports with ¾” through-hole and end ports

• Secure Mounting: Two top-mount holes fit MWE mounting plates and other flat surfaces

• Durable Design: Built to handle harsh environments and chemical exposure

• 5-Year Warranty: Long-term peace of mind included with every manifold

Note: Midwest Washing Equipment recommends using Teflon tape or white PTFE sealant only. Do not use Tru-Blu sealant on ClearView manifolds.

ClearView Manifold V3 – Compact 3-Port Solution

The ClearView V3 Manifold offers the same dependable design in a more compact, three-port layout. With all ports sized at ½”, it’s ideal for lower flow or more precise metering configurations. The transparent body ensures immediate visual confirmation of flow direction and helps spot potential leaks or flow issues quickly.

Like other models, the V3 mounts securely to plates using the two top bolt holes for easy integration.

Key Features:

• Three ½” Ports: Designed for compact systems and lower GPM configurations

• Clear Body Design: Easily monitor flow and catch blockages early

• ½” Through-Hole and End Ports: Consistent sizing across all connections

• Easy to Mount: Fits MWE plates and other mounting surfaces with dual top bolt holes

• 5-Year Warranty: Covers defects and manufacturing issues for long-term reliability

Sealant Tip: Use only white PTFE thread sealant or Teflon tape. Avoid using Tru-Blu, which may damage the clear material.

ClearView Manifold XL/XXL – High-Flow Visibility

Engineered for high-flow setups, the ClearView XL/XXL Manifold is perfect for large-volume soft wash systems. This model features a four-port configuration (1″, ½”, 1″, ½”) with 1″ through-hole and 1″ end ports, ensuring high-volume flow with minimal resistance.

The clear material lets you monitor product movement in real time, helping to eliminate mixing errors and speed up troubleshooting. With two mounting holes on top, it installs quickly and securely on MWE plates or similar setups.

Key Features:

• High-Flow Port Sizes: Two 1″ ports and two ½” ports for balanced output and metering

• Full Visibility: See solution flow for safer, more accurate mixing

• Robust Design: Handles demanding chemical environments with ease

• Secure Installation: Mounts using two top bolt holes on any flat surface

• 5-Year Warranty: Confidence built into every manifold

Important Note: Always use Teflon tape or white PTFE sealant with ClearView models. Avoid Tru-Blu to prevent cracking or thread damage.
